Produk: Mobile Compactor System (Hand Push)    steel furniture



  • RM684 - RM1,050 PER BAY

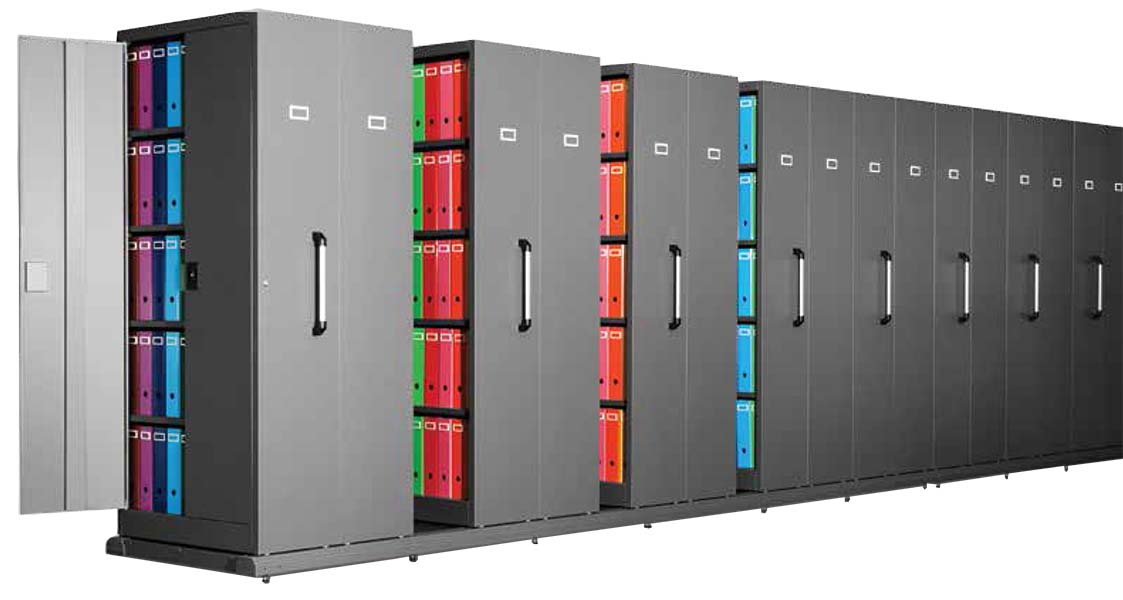

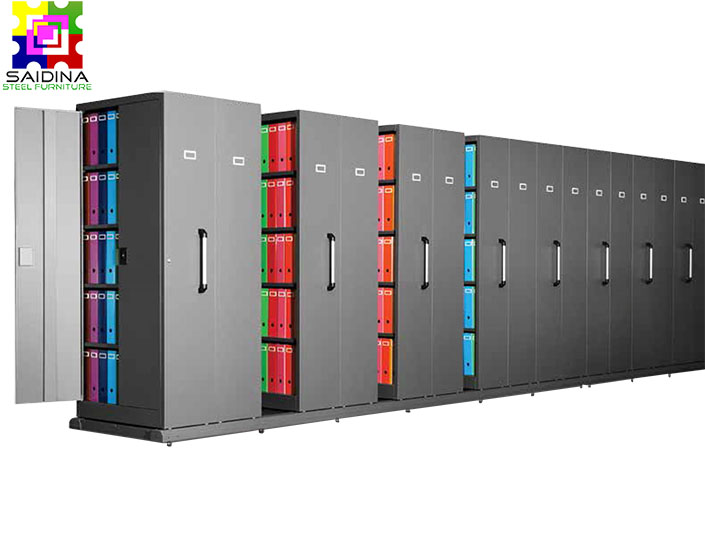

Hand Push Mobile Compactor System

HARGA: RM684 - RM1,050 PER BAY

Mobile Compactor
  • Projek

Galeri Foto

Maklumat produk.

Eloquently Maximizing Large Workspaces

Specially made for file organization and space efficiency, Wintech Mobile Compactor maximizes the storage capacity of your current space, creates more “people” space, and helps you focus on your important tasks.

Introduction

The nearly unlimited storage solutions Wintech Mobile Compactor offers will address your specific storage needs.

Ideal For:

  • Office Supplies
  • Medical Supplies
  • Backroom Inventory
  • Sporting Goods
  • Parts
  • Law Books
  • Media
  • Tools

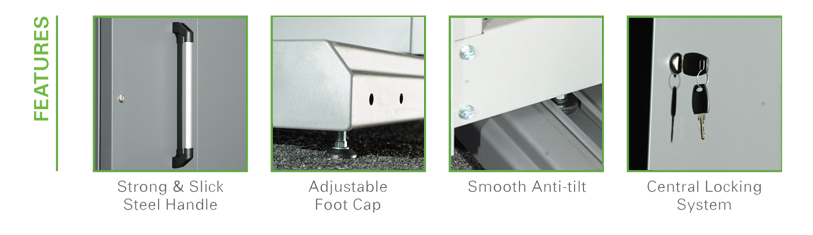

handpush-features-1
handpush-features-2
handpush-manual-type

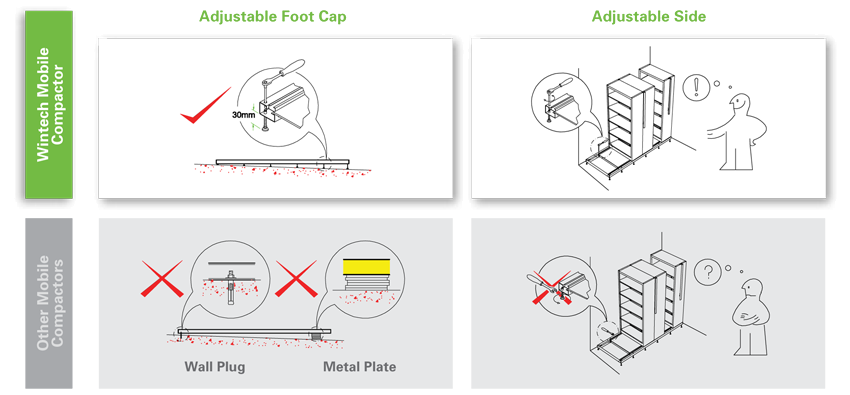

  • Platform with adjustable foot caps (no drilling or pre-leveling on the floor is needed)
  • Foot cap height adjusts up to 30mm
  • Rails are made of 3mm cold rolled steel using laser cut process
  • Pre-treatment process which includes deionized water rinse, followed by electrostatic polyester-epoxy powder coating as standard finish
  • Industrial wheels – quiet & strong
  • Standard in track anti-tilt mechanism
TYPES SPECIFICATIONS
MATERIAL Cold Rolled Steel
FINISH Epoxy Powder Coating
SHELF SIZE 910(W) x 355(D) x 25(H)
WIDTH 980
HEIGHT 2150
NO. OF SHELF 4 pieces per bay
LOADING PER SHELF 40kg UDL
AISLE SIZE 800mm
MATERIAL THICKNESS Base : 1mm, Back Panel : 0.6mm, Rail : 3mm, Platform : 18mm Chipboard,
Top Panel : 0.8mm, Side Panel : 0.8mm, Shelf : 0.6mm
RAIL Made of 3mm Cold Rolled Steel Using Laser Cut Process and with Adjustable Foot Cap
WHEEL D60mm Bearing with Nylon Coating, Loading : 150kg/ Wheel
MOVEMENT Left/ Right

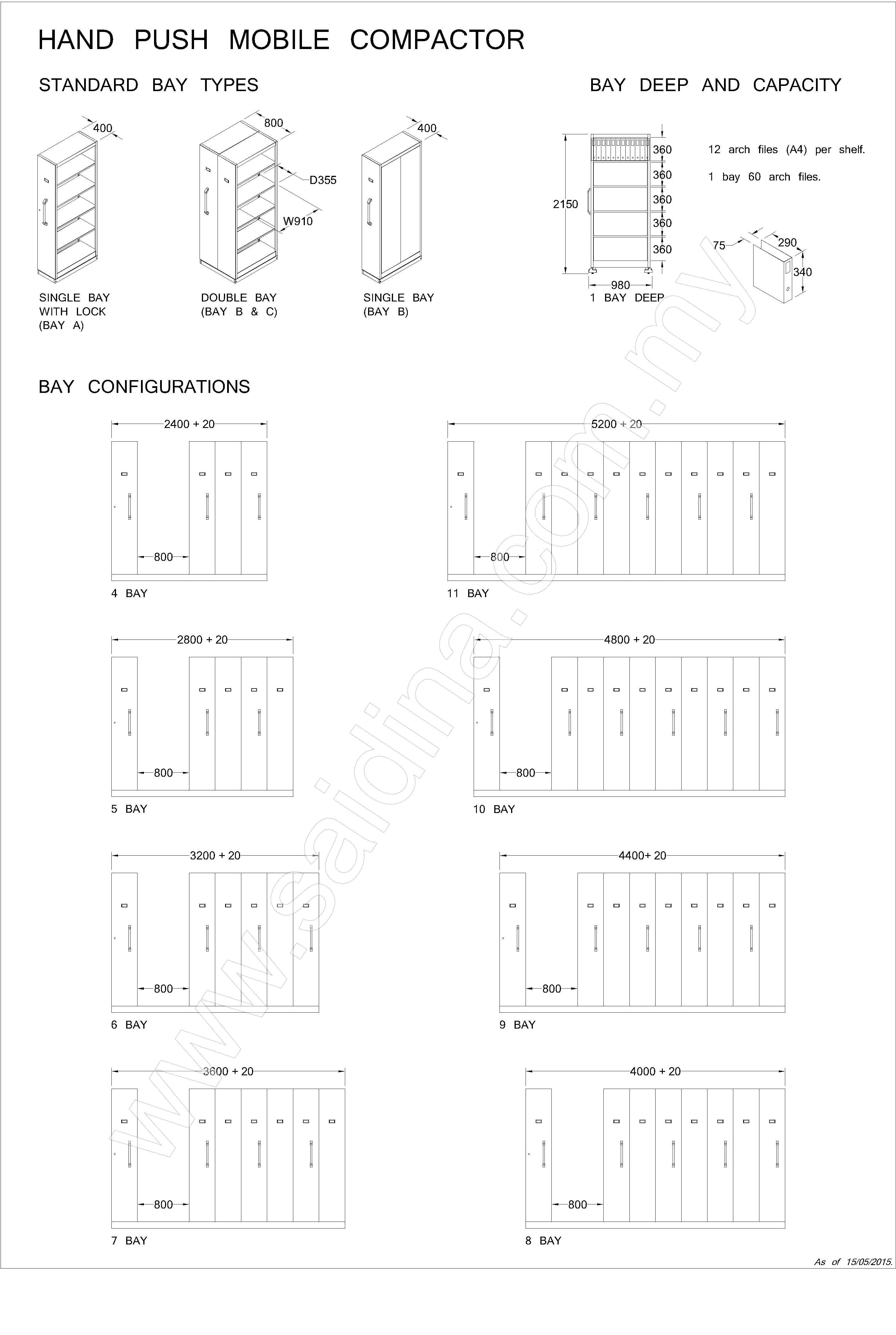

mobile compactor technical info
mobile compactor accessories                  mobile compactor accessories

Model: HMC004

HARGA: Hubungi kami untuk sebutharga

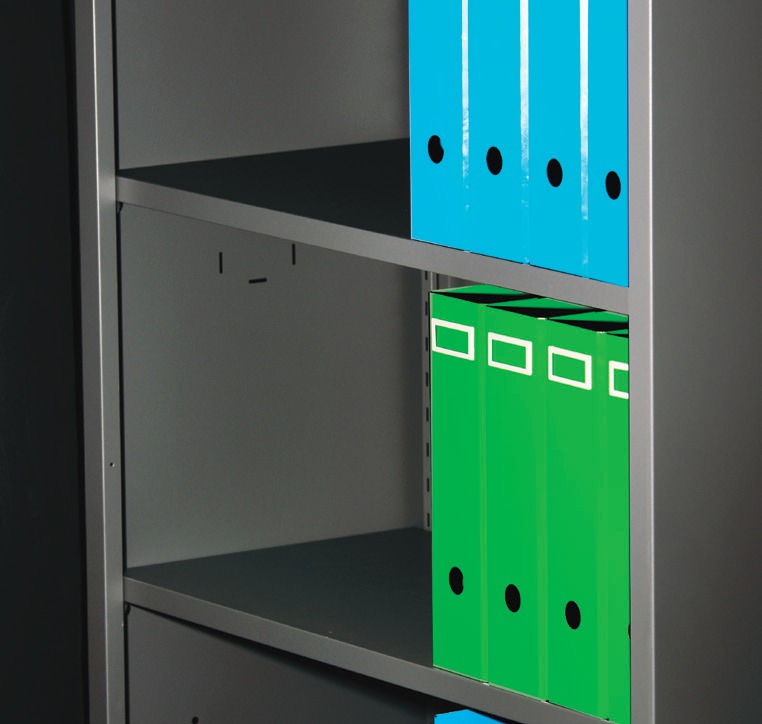

DESC : DESC : HMC SHELF
DIMENSION : 910(W) X 355(D) X 25(H)
PACKING DIM : 930 X 375 X 40
WEIGHT / VOL : 2.2 KG / 0.01 M³



Model: HMC005

HARGA: Hubungi kami untuk sebutharga

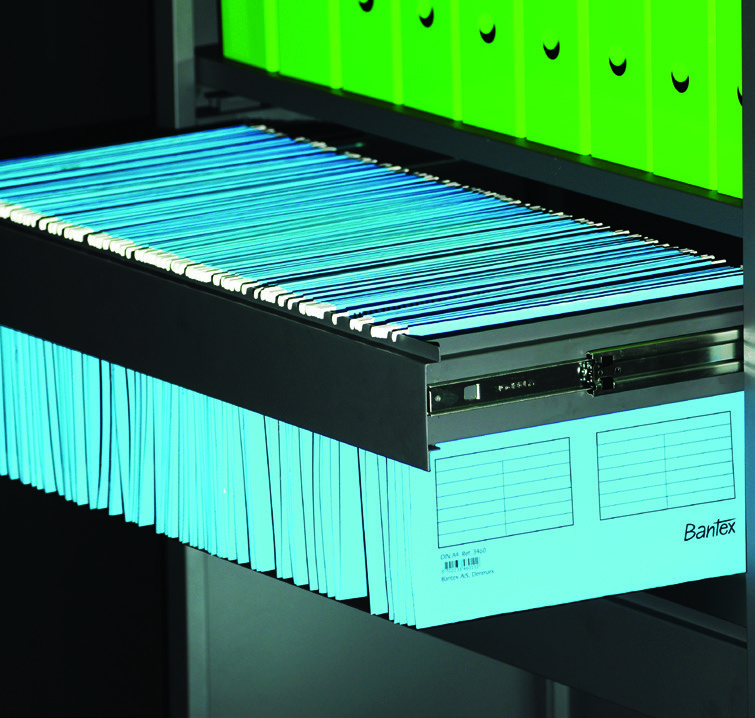

DESC : HMC LATERAL FRAME
DIMENSION : 840(W) X 355(D) X 79(H)
PACKING DIM : 860 X 375 X 90
WEIGHT / VOL : 5 KG / 0.03 M³
mobile compactor accessories                  mobile compactor accessories

Model: HMC006

HARGA: Hubungi kami untuk sebutharga

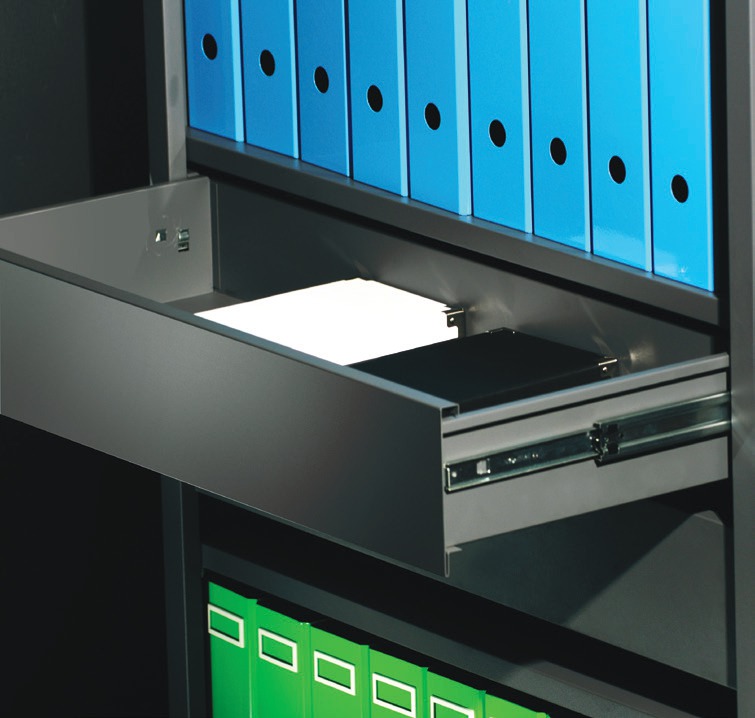

DESC : HMC DRAWER
DIMENSION : 840(W) X 355(D) X 150(H)
PACKING DIM : 860 X 375 X 160
WEIGHT / VOL : 6 KG / 0.05 M³



Model: HMC007

HARGA: RM227.00 - RM303.00

DESC : HMC SWING DOOR
DIMENSION : 840(W) X 18(D) X 1895(H)
PACKING DIM : 60 X 450 X 1930
WEIGHT / VOL : 15 KG / 0.05 M³
